HIPPO 500

HIPPO 500

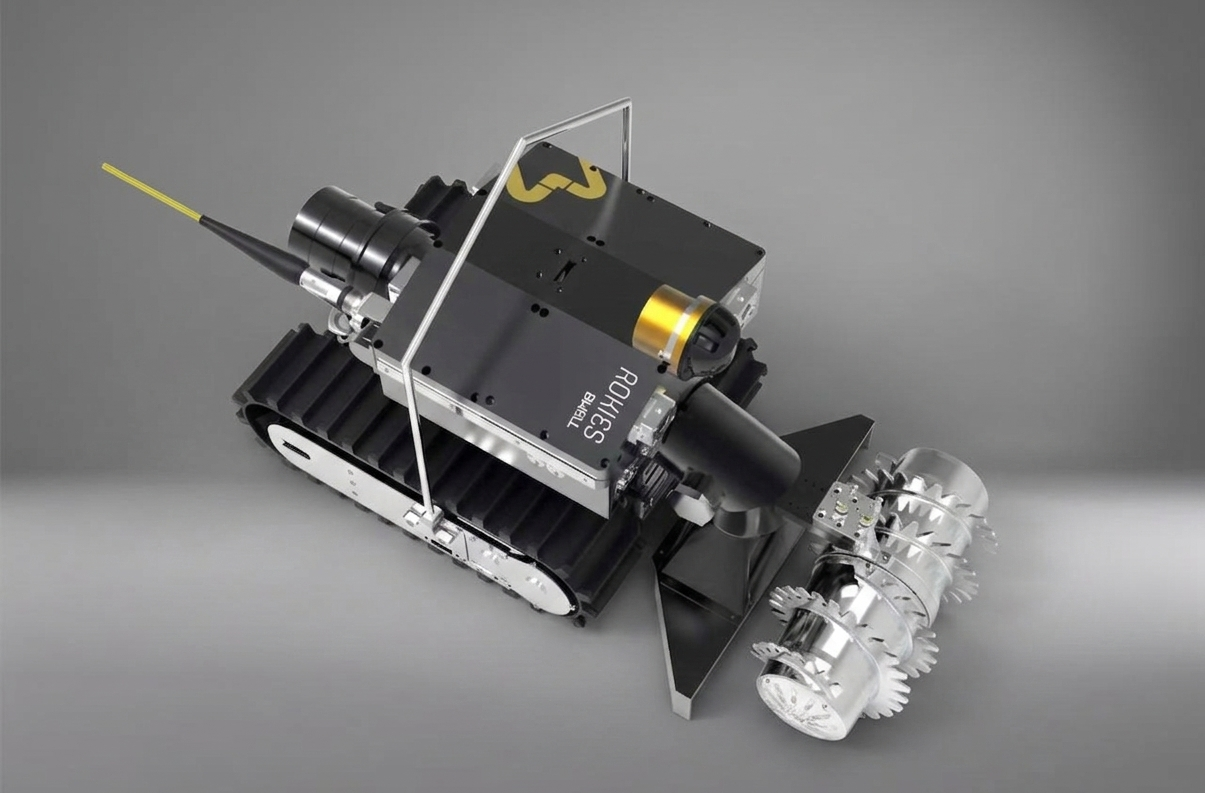

The Hippo 500 is a sludge cleaning robot that integrates inspection and cleaning functions. It is designed for use in confined spaces with diameters ranging from DN500 to DN2000, offering efficient pipe inspection and debris removal.

Technical Specifications – Main Unit
Parameter Specification
Deployment RangeDN500 and above
Dimensions900 × 400 × 400 mm
WeightApprox. 150 kg
Max. Sediment Particle SizeDependent on vacuum truck
Hydraulic System Flow25 L/min
Pump DisplacementDependent on vacuum truck
Pumping HeightDependent on vacuum truck
Hydraulic System Pressure14 MPa
Protection ClassIP68
Allowed Ambient Temp.0 °C ~ 50 °C
Technical Specifications – Camera
Parameter Specification
Pan & Tilt 280° Rotation, 180° Tilting range
Front Camera Resolution Full HD · 4.0 MP · 2704 × 1520P
Rear Camera Resolution Full HD · 2.1 MP · 1920 × 1080P
Digital Zoom4×
Light Sensitivity0.01 lux
Lighting 4 High-power white LEDs
Technical Specifications – Cable Drum
Parameter Specification
Dimensions 416 × 660 × 480 mm
Weight 45 kg (w/o battery)
Motor-driven ✓
Cable Length 120 m
Technical Specifications – Control Unit
Parameter Specification
Screen Size 10.4 inches
Weight Approx. 447 g (w/o protective case)
Operating System Android
Screen Resolution ≥ 1920 × 1200
Battery Life 8 h
Data Storage 128 GB
Connections USB Type-C
Data Transmission Wi-Fi Connection
